| Part No |
90NB17X2-M007M0 |
| Sales Model Name |
HN7306EAC-LX102W |
| EAN Code |
4711636449700 |
| UPC Code |
199291449701 |
| WEEE |
1.13 |
| BASE UNIT |
VSNB17X2-BU1100 |
|
|
| Marketing Name |

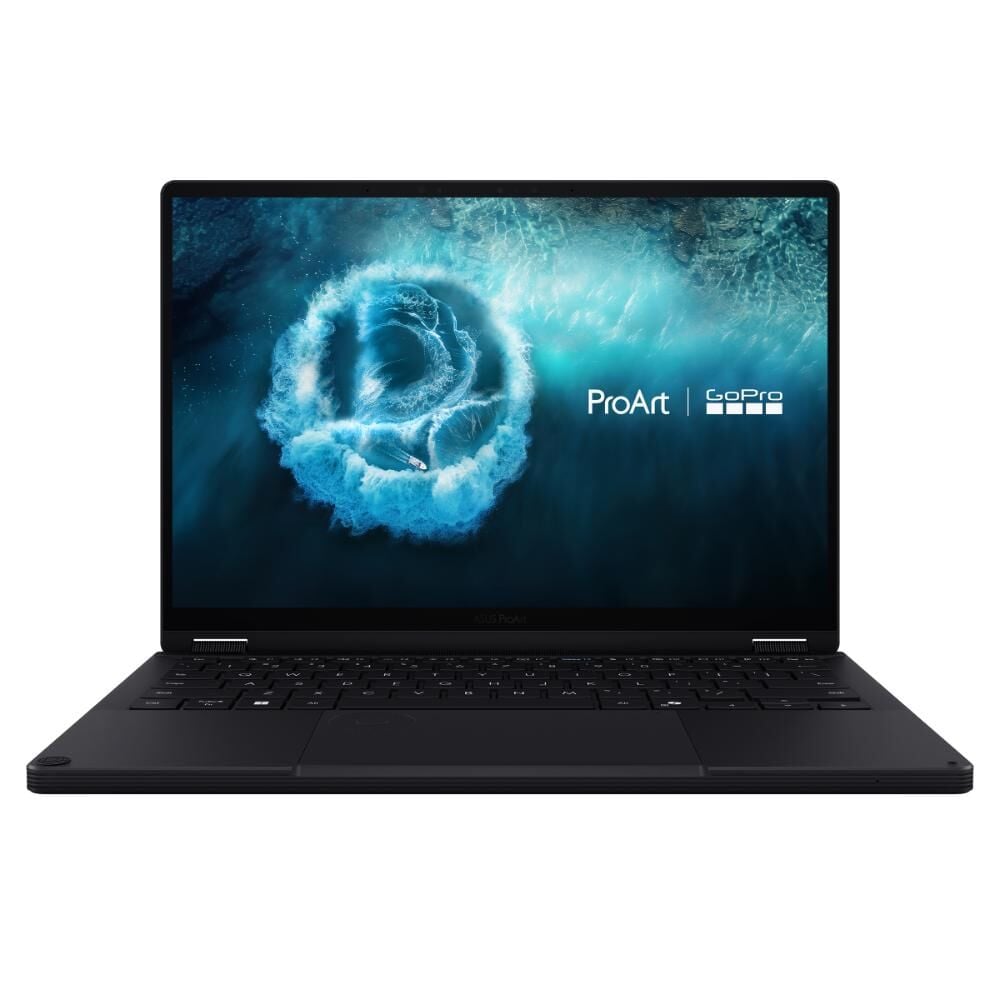

ProArt PX13 |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Aluminum |
| LCD cover-color |
Nano Black |
| Top case-material |
Aluminum |
| Top case-color |
Nano Black |
| Keyboard color |
Black |
| Bottom case-material |
Aluminum |
| Bottom case-color |
Nano Black |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Touch screen |
| Panel Size |
13.3-inch |
| Resolution |
3K (2880 x 1800) OLED 16:10 aspect ratio |
| Response time |
0.2ms response time |
| Refresh rate |
60Hz |
| Brightness |
400nits |
| Peak Brightness |
500nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Gamut mapping |
Yes |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 500 |
| Color depth |
1.07 billion colors |
| Pantone |
PANTONE Validated |
| Surface texture of display |
Glossy display |
| Low blue light |
70% less harmful blue light |
| TÜV Rheinland-certified |
TÜV Rheinland-certified |
| SGS Eye Care Display |
SGS Eye Care Display |
| Screen-to-body ratio |
85% |
| Stylus support |
With stylus support |
| Processor |
AMD Ryzen™ AI MAX+ 395 Processor 3.0GHz (80MB Cache, up to 5.1GHz, 16 cores, 32 Threads); AMD XDNA™ NPU up to 50TOPS |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Neural Processor |
AMD XDNA™ NPU up to 50TOPS |
| Expansion Slot(includes used) |
1x M.2 2230 PCIe 4.0x4 |
| On board memory |
128GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 128GB |
| Storage |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
FHD camera with IR function to support Windows Hello |
| Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type |
Backlit Chiclet Keyboard
With Copilot key |
| Touchpad |
Precision touchpad
support DialPad |
| FingerPrint |
N/A |
| I/O ports |
1x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)
2x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps)
1x HDMI 2.1 FRL
1x 3.5mm Combo Audio Jack
1x DC-in
Micro SD 4.0 card reader |
| XG Mobile supported |
GC34 |
| Audio |
Smart Amp Technology
Built-in speaker
Built-in array microphone |
| Voice control |
N/A |
| Power |
Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100~240V AC, 50/60Hz universal |
| Required charging power |
Min: 45W
Max: 100W |
| Battery |
73WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery |
No |
| Weight (with Battery) |
1.39 kg (3.06 lbs) |
| Weight (without Battery) |
1.13 kg (2.49 lbs) |
| Dimension (W x H x D) |
29.82 x 20.99 x 1.58 ~ 1.77 cm (11.74" x 8.26" x 0.62" ~ 0.70") |
| Built-in Apps |
CapCut
MuseTree
StoryCube
MyASUS
ProArt Creator Hub
ScreenXpert
GlideX |
| MyASUS feature |
System diagnosis
Battery health charging
Fan Profile
Splendid
Function key lock
WiFi SmartConnect
TaskFirst
Live update
ASUS OLED Care
AI Noise Canceling |
| Content for GoPro free subscription |
1-Year GoPro Premium+ Subscription
*Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus |
N/A |
| Security |
IR webcam with Windows Hello support
BIOS Booting User Password Protection
Microsoft Pluton security processor
Trusted Platform Module (Firmware TPM) |
| Adobe Creative Cloud Hard Bundle |
3-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2026. |
| Ecolabels & Compliances |
RoHS
REACH |
| Included in the Box |
Stylus with wireless charger (ASUS Pen SA205H-MPP2.6 support)
Sleeve |
