| Part No |
90NR0PC1-M00220 |
| Sales Model Name |
GU606AR-TB047-Gaming |
| EAN Code |
4711636567459 |
| UPC Code |
199291567450 |
| WEEE |
2.346 |
| BASE UNIT |
VSNR0PC1-BU1100 |
| Marketing Name |

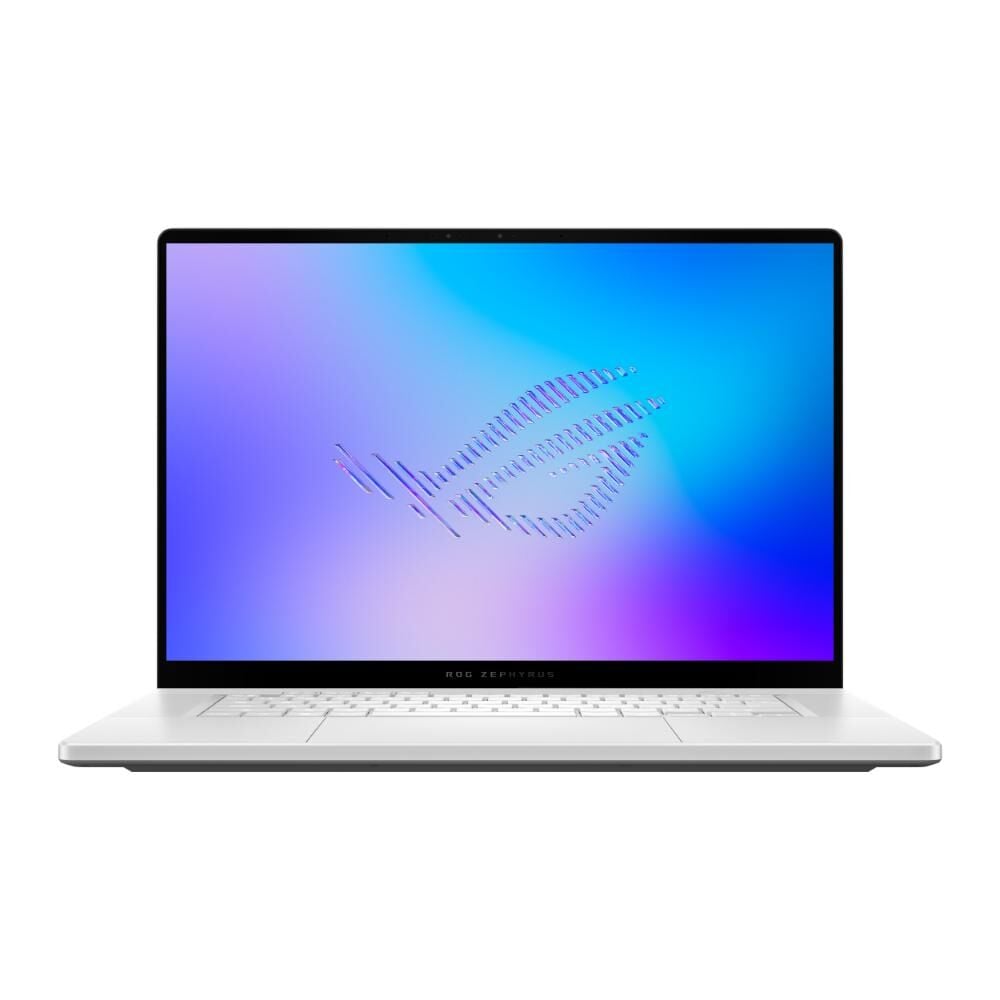

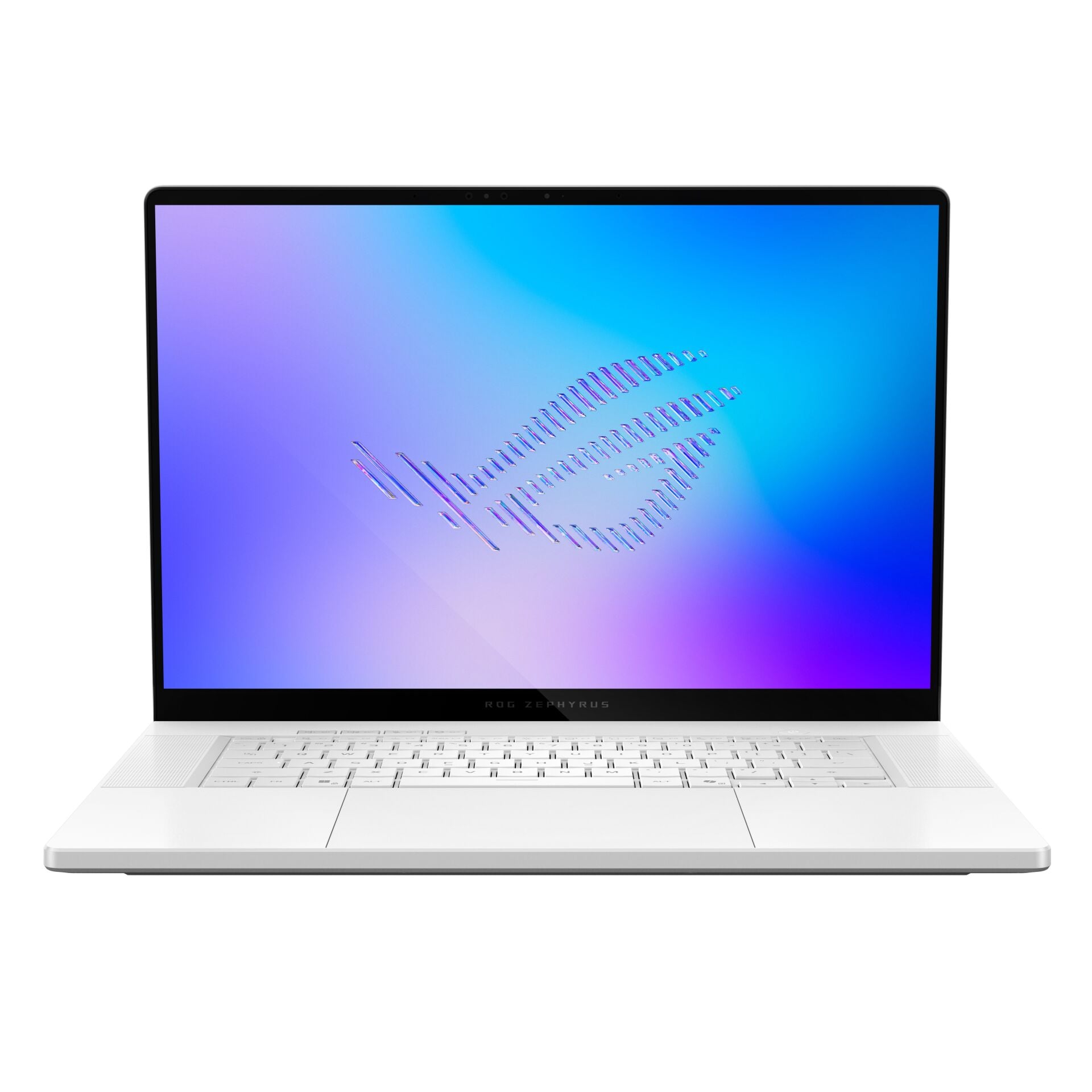

ROG Zephyrus G16 |
| Operating System |
No preinstalled OS |
| Color |
Platinum White |
| Top case-material |
Aluminum |
| LCD cover-material |
Texture plastic |
| Bottom case-material |
Aluminum |
| Dimension (W x D x H) |
35.4 x 24.6 x 1.49 ~ 1.79 cm (13.94" x 9.69" x 0.59" ~ 0.70") |
| Weight |
1.95 Kg (4.30 lbs) |
| Processor |
Intel® Core™ Ultra 9 Processor 386H 2.1 GHz (18MB Cache, up to 4.9 GHz, 16 cores, 16 Threads); Intel® NPU up to 50TOPS |
| Chipset |
N/A |
| Intergrated GPU |
Intel® Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU |
| Graphic Wattage |
ROG Boost:
Turbo mode: 1497MHz at 125W* (1447MHz Boost Clock+50MHz OC, 105W+20W Dynamic Boost)
Manaul mode: 1497MHz at 140W* (1447MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) |
| Graphic Memory |
12GB GDDR7 |
| Neural Processor |
Intel® NPU up to 50TOPS |
| Panel Size |
16-inch |
| Resolution |
2.5K (2560 x 1600, WQXGA) OLED 16:10 aspect ratio |
| Refresh Rate |
240Hz |
| Viewing Angle |
89/89/89/89 |
| Panel Tech |
OLED |
| Brightness |
1100 nits (Peak) |
| Contrast Ratio |
1,000,000:1 |
| Surface texture of display |
Anti-reflection(AR) display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
Pantone Validated |
| Nebula Display |
ROG Nebula HDR Display |
| Support Dolby Vision HDR |
Yes |
| On board memory |
32GB LPDDR5X 8533 on board(Actual memory speeds may vary by CPU configuration.) |
| Total System Memory |
LPDDR5X 32GB |
| Memory Slot |
No expansion possible |
| Memory Max. |
32GB |
| Multi-channel memory technology |
Support dual channel memory technology |
| Storage |
2TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
1TB M.2 NVMe™ PCIe® G5x4 Performance SSD (ACC only)
2TB M.2 NVMe™ PCIe® G5x4 Performance SSD (ACC only)
1TB M.2 NVMe™ PCIe® G4x4 Value SSD
2TB M.2 NVMe™ PCIe® G4x4 Value SSD |
| Expansion Slot (includes used) |
2x M.2 PCIe |
| LAN |
N/A |
| Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 6.0 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x Thunderbolt™ 4 with support for DisplayPort™ / power delivery (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)
1x card reader (SD) (UHS-II, 312MB/s) |
| Display output |
1x HDMI 2.1 FRL |
| Camera |
1080P FHD IR Camera for Windows Hello |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Aura Sync |
N/A |
| Touchpad |
Touchpad
N/A |
| Speakers |
4-speaker (dual-force woofer) system with Smart Amplifier Technology, 2 Tweeters |
| Audio |
1x 3.5mm Combo Audio Jack
Built-in array microphone |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Smart Amp Technology |
| Security |
BIOS Administrator Password and User Password Protection
Pluton Security Processor
Secured-core PC (Level 3) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Charger included |
Included |
| Power |
Rectangle Conn, 250W AC Adapter, Output: 20V DC, 12.5A, 250W, Input: 100-240V AC, 50/60Hz universal |
| Required charging power |
Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Ecolabels & Compliances |
N/A |
| Reparability Index (for France) |
9.5 |
