| Part No |
90NR0QF3-M004R0 |
| Sales Model Name |
FA607NUQ-RL071-Gaming |
| EAN Code |
4711636436854 |
| UPC Code |
199291436855 |
| WEEE |
3.038 |
| BASE UNIT |
VSNR0QF3-BU1100 |
| Marketing Name |

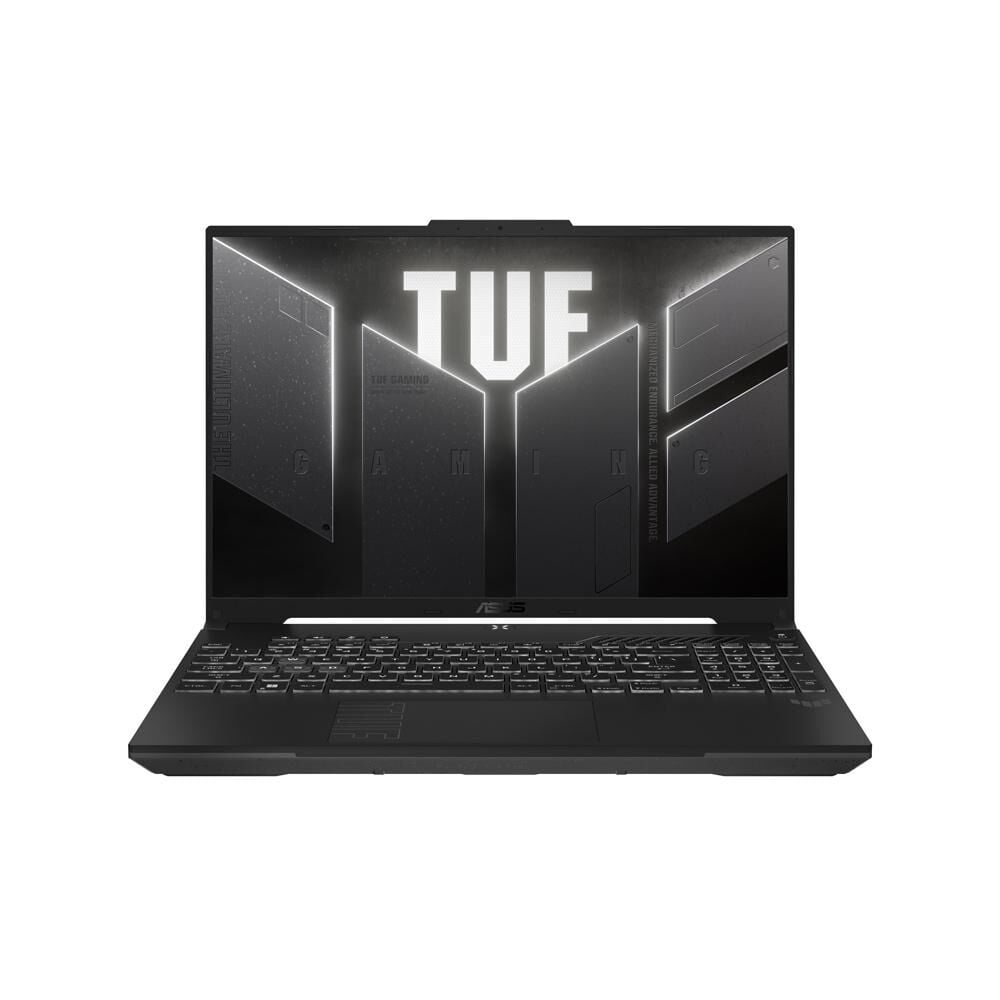

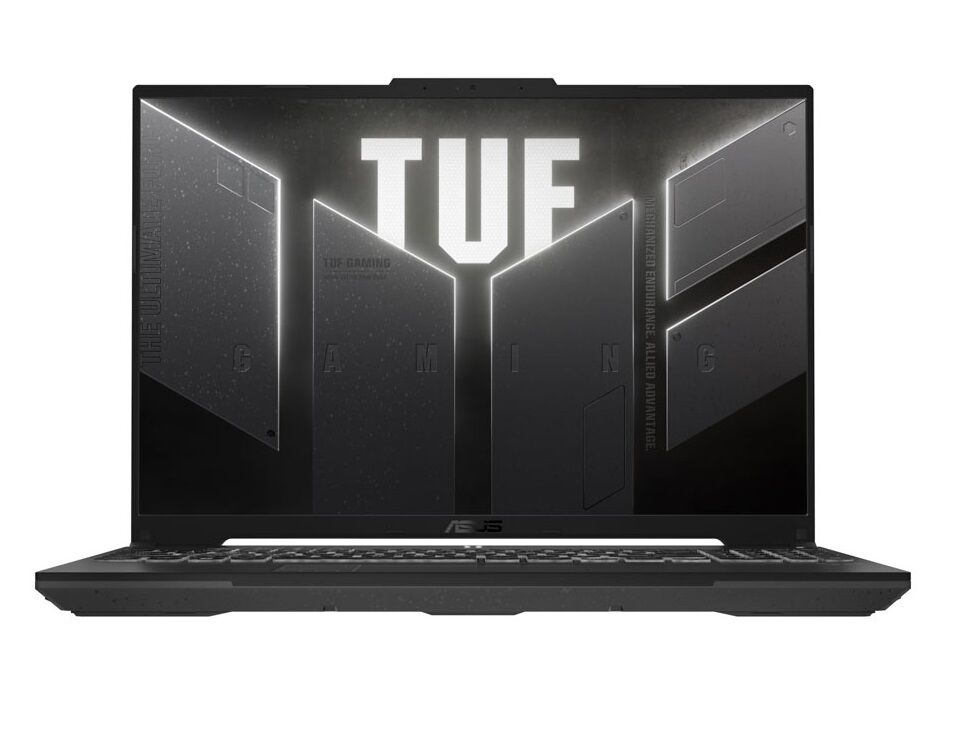

ASUS TUF Gaming A16 |
| Operating System |
No preinstalled OS |
| Color |
Mecha Gray |
| Dimension (W x D x H) |
35.4 x 25.1 x 2.24 ~ 2.67 cm (13.94" x 9.88" x 0.88" ~ 1.05") |
| Weight |
2.20 Kg (4.85 lbs) |
| Processor |
AMD Ryzen™ 7 170 Processor 3.2GHz (20MB Cache, up to 4.75 GHz, 8 cores, 16 Threads) |
| Chipset |
N/A |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 4050 Laptop GPU (194 AI TOPs) |
| Graphic Wattage |
2195MHz at 90W (2145MHz Boost Clock+50MHz OC, 65W+25W Dynamic Boost) |
| Graphic Memory |
6GB GDDR6 |
| Panel Size |
16-inch |
| Resolution |
FHD+ 16:10 (1920 x 1200, WUXGA) |
| Refresh Rate |
144Hz |
| Viewing Angle |
85/85/85/85 |
| Panel Tech |
Value IPS-level |
| Brightness |
300nits |
| Contrast Ratio |
1000:1 |
| NTSC % |
45% |
| Adobe % |
75.35% |
| Surface texture of display |
Anti-glare display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
N/A |
| Support Dolby Vision HDR |
N/A |
| On board memory |
N/A |
| DIMM Memory |
16GB DDR5-4800 SO-DIMM |
| Total System Memory |
DDR5 16GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
64GB |
| Multi-channel memory technology |
Support dual channel memory technology |
| Storage |
512GB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
M.2 2TB G4X4 PCIe SSD
M.2 1TB G4X4 PCIe SSD
M.2 512GB G4X4 PCIe SSD |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots
2x M.2 PCIe |
| LAN |
10/100/1000 Mbps |
| Wireless |
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)
Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS upgrades.) |
| I/O Ports |
1x RJ45 LAN port
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps) |
| Display output |
1x HDMI 2.1 FRL |
| Camera |
720P HD camera |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Aura Sync |
Yes |
| Touchpad |
Touchpad
N/A |
| Speakers |
2-speaker system |
| Audio |
1x 3.5mm Combo Audio Jack
Built-in array microphone |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.) |
| Security |
BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM) |
| Battery |
56WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
ø6.0, 180W AC Adapter, Output: 20V DC, 9A, 180W, Input: 100~240V AC, 50/60Hz universal |
| Ecolabels & Compliances |
N/A |
| Reparability Index (for France) |
9.9 |
