| Part No |
90NR0MD1-M009C0 |
| Sales Model Name |
FA608PP-RV159-Gaming |
| EAN Code |
4711636597005 |
| UPC Code |
199291597006 |
| WEEE |
2.777 |
| BASE UNIT |
VSNR0MD1-BU2100 |
| Marketing Name |

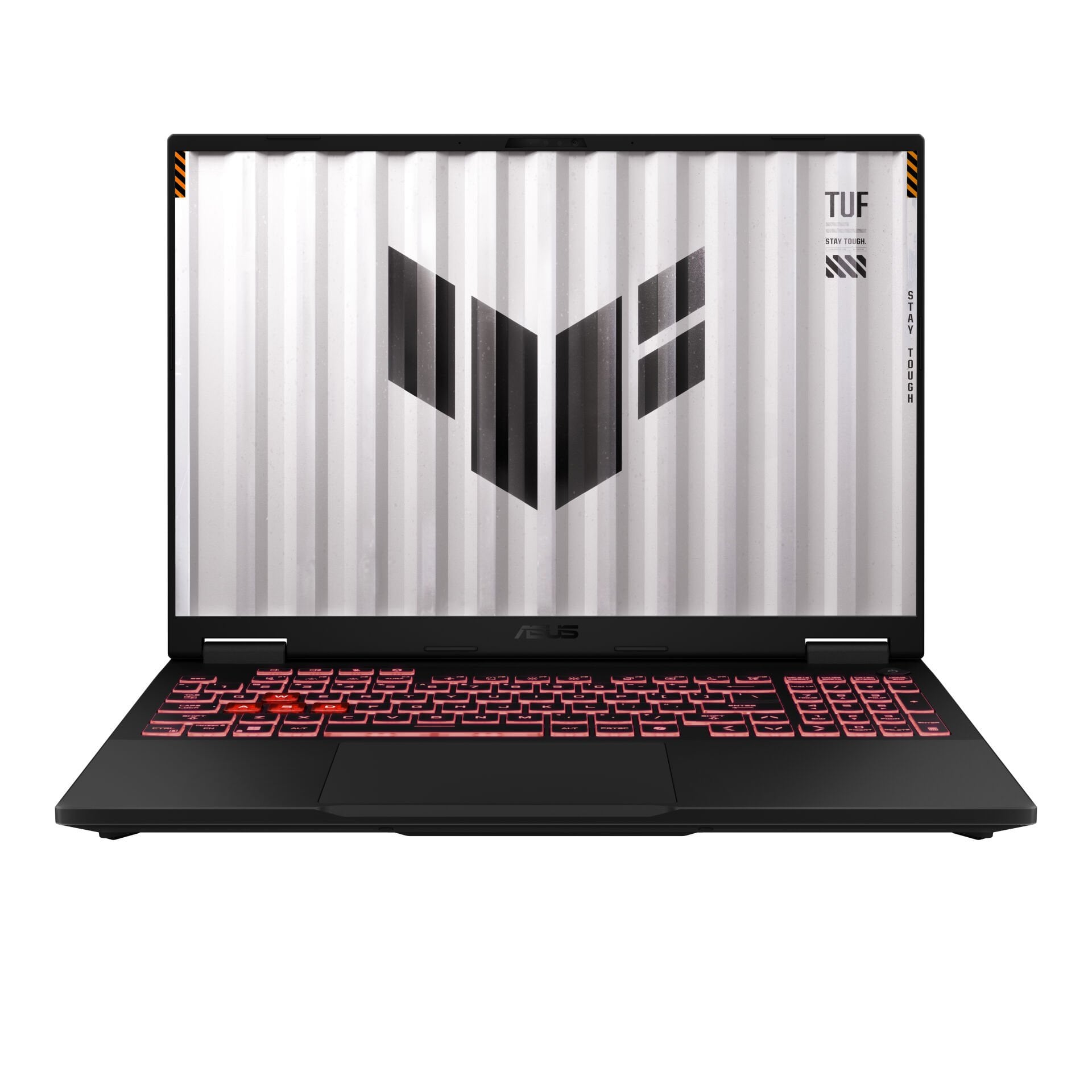

ASUS TUF Gaming A16 |
| Operating System |
No preinstalled OS |
| Color |
Jaeger Gray |
| Top case-material |
Aluminum |
| LCD cover-material |
Texture plastic |
| Bottom case-material |
Texture plastic |
| Dimension (W x D x H) |
35.4 x 26.9 x 1.79 ~ 2.73 cm (13.94" x 10.59" x 0.70" ~ 1.07") |
| Weight |
2.20 Kg (4.85 lbs) |
| Processor |
AMD Ryzen™ 9 8940HX Processor 2.4GHz (80MB Cache, up to 5.3GHz, 16 cores, 32 Threads) |
| Chipset |
N/A |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 5070 Laptop GPU |
| Graphic Wattage |
115W (100W+15W) |
| Graphic Memory |
8GB GDDR7 |
| Panel Size |
16-inch |
| Resolution |
FHD+ 16:10 (1920 x 1200, WUXGA) |
| Refresh Rate |
165Hz |
| Viewing Angle |
85/85/85/85 |
| Panel Tech |
IPS-level |
| Brightness |
400 |
| Contrast Ratio |
1000:1 |
| NTSC % |
72.00% |
| SRGB % |
100.00% |
| Adobe % |
75.35% |
| Surface texture of display |
Anti-glare(AG) display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
N/A |
| Support Dolby Vision HDR |
N/A |
| On board memory |
N/A |
| DIMM Memory |
8GB DDR5-5600 SO-DIMM *2
The memory speed of the systems vary by CPU SPEC |
| Total System Memory |
DDR5 16GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
64GB |
| Multi-channel memory technology |
Support dual channel memory technology |
| Storage |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
M.2 512GB PCIe SSD
M.2 1TB PCIe SSD
M.2 2TB PCIe SSD |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots
2x M.2 PCIe |
| LAN |
10/100/1000 Mbps |
| Wireless |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x RJ45 LAN port
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / G-SYNC (data speed up to 10Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) |
| Display output |
1x HDMI 2.1 FRL |
| Camera |
1080P FHD IR Camera for Windows Hello |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Aura Sync |
Yes |
| Touchpad |
Touchpad
N/A |
| Speakers |
2-speaker system |
| Audio |
1x 3.5mm Combo Audio Jack
Built-in array microphone |
| Audio Tech |
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.) |
| Security |
BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM) |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Charger included |
Included |
| Power |
Rectangle Conn, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100-240V AC, 50/60Hz universal |
| Required charging power |
Min: 45W
Max: 100W |
| Ecolabels & Compliances |
N/A |
| Reparability Index (for France) |
9.9 |
| Reparability Index (for BNL) |
9.8 |
