| Part No+A37B21A19:B79 |
90NB14X1-M00JX0 |
| Sales Model Name |
UX8406CA-QL007W |
| EAN Code |
4711636393805 |
| UPC Code |
199291393806 |
| WEEE |
1.11 |
| BASE UNIT |
VSNB14X1-BU2100 |
|
|
| Marketing Name |

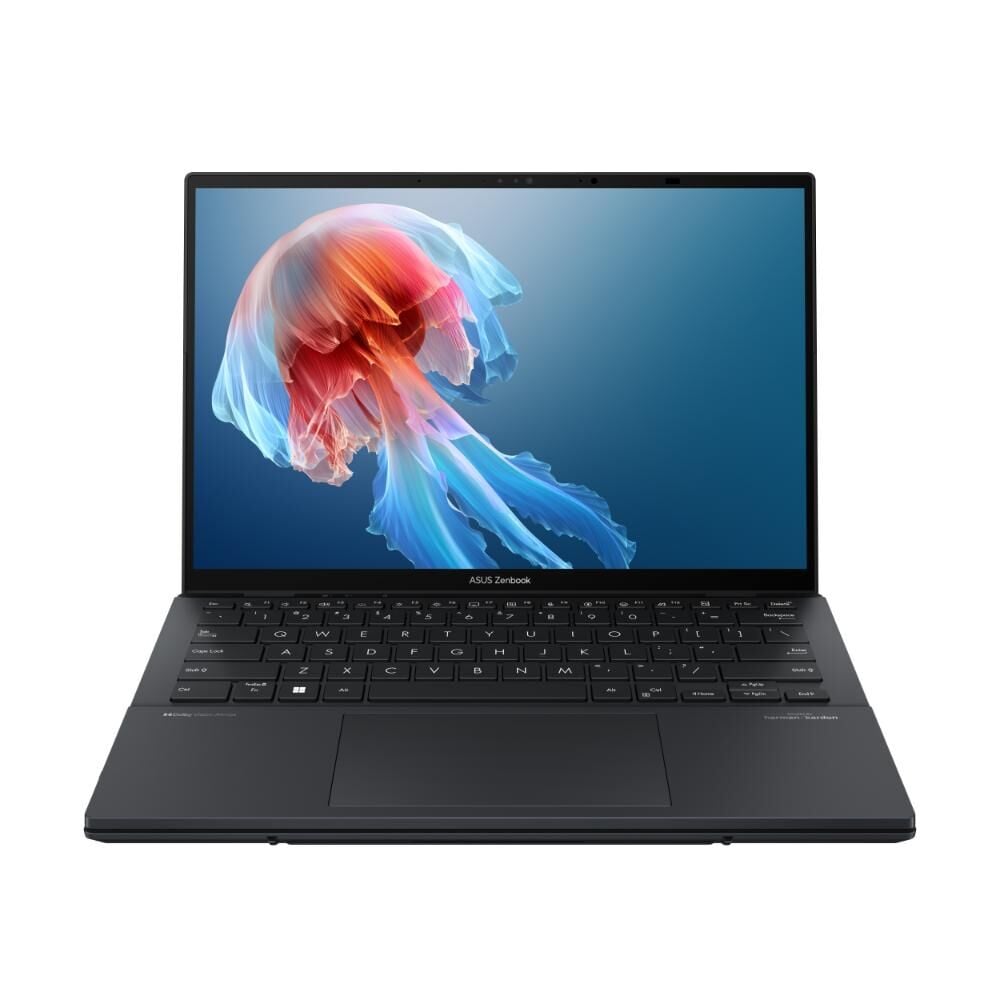

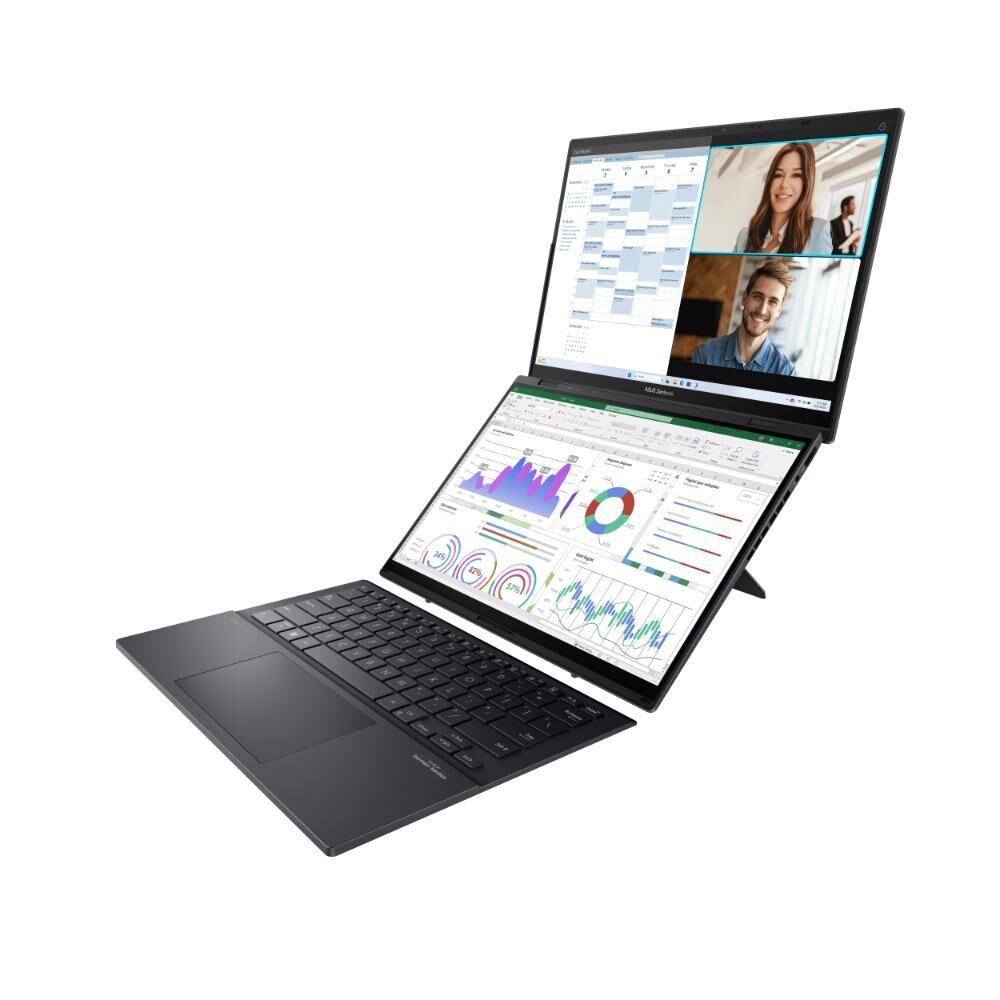

ASUS Zenbook Duo |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Mg-Al |
| LCD cover-color |
Inkwell Gray |
| Top case-material |
Mg-Al |
| Top case-color |
Inkwell Gray |
| Keyboard color |
Black |
| Bottom case-material |
Mg-Al |
| Bottom case-color |
Inkwell Gray |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Touch screen |
| Panel Size |
14.0-inch |
| Resolution |
FHD (1920 x 1200) OLED 16:10 aspect ratio |
| Response time |
0.2ms response time |
| Refresh rate |
60Hz |
| Brightness |
400nits |
| Peak Brightness |
500nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Gamut mapping |
Yes |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 500 |
| Color depth |
1.07 billion colors |
| Pantone |
PANTONE Validated |
| Surface texture of display |
Anti-glare and low-reflection(AGLR) display |
| Low blue light |
70% less harmful blue light |
| Screen-to-body ratio |
91% |
| Stylus support |
With stylus support |
| Processor |
Intel® Core™ Ultra 7 Processor 255H 2.0 GHz (24MB Cache, up to 5.1 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13TOPS |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
Intel® Arc™ Graphics |
| Neural Processor |
Intel® AI Boost NPU up to 13TOPS |
| Expansion Slot(includes used) |
1x M.2 2280 PCIe 4.0x4 |
| On board memory |
16GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 16GB |
| Storage |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
FHD camera with IR function to support Windows Hello |
| on board Wireless |
Wi-Fi 7(802.11be) (Tri-band)2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type |
Soft Keyboard |
| Touchpad |
Precision touchpad |
| FingerPrint |
N/A |
| I/O ports |
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)
2x Thunderbolt™ 4 with support for display / power delivery (data speed up to 40Gbps)
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack |
| XG Mobile supported |
GC34 |
| Audio |
Smart Amp Technology
Built-in speaker
Built-in array microphone |
| Voice control |
with Cortana support |
| Charger included |
Included |
| Power |
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal |
| Required charging power |
Min: 45W
Max: 65W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Battery |
75WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery |
No |
| Weight (with Battery) |
1.65 kg (3.64 lbs)
Weight of system: 1.35 kg
Weight of keyboard: 0.30 kg |
| Weight (without Battery) |
1.39 kg (3.06 lbs) |
| Dimension (W x H x D) |
31.35 x 21.79 x 1.46 ~ 1.99 cm (12.34" x 8.58" x 0.57" ~ 0.78") |
| Dimension for Keyboard |
31.28 x 20.90 x 0.51 ~ 0.53 cm (12.31" x 8.23" x 0.20" ~ 0.21") |
| Built-in Apps |
ASUS Recovery
MyASUS
ScreenXpert
GlideX |
| MyASUS feature |
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
TaskFirst
Live update
ASUS OLED Care
AI Noise Canceling |
| Exclusive subscription offers |
3-Month GoPro Premium+ Subscription
1-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2026.
N/A
6-Month Dropbox 500GB Subscription
1-Year ASUS Secure Auto-Backup 200GB Subscription
*Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus |
N/A |
| Security |
IR webcam with Windows Hello support
Trusted Platform Module (Firmware TPM) |
| Ecolabels & Compliances |
Energy star 8.0
RoHS |
